Reducing Flanges

reducingflange

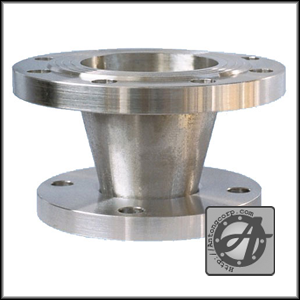

Description of Reducing Flange

Reducing Flange Manufacturer Antong supplies Reduce Flange, Reducing Flange in forged steel, Stainless Steel, Carbon steel etc.

Specification of Reducing Flange, Reduce Flange


Reducing flanges are widely used in water conservancy, power, power plants, pipe fittings, industrial, pressure vessel. The product has a resistance to corrosion. Acid. Advantages of long life. Reducing Flanges are suitable for changing line size, but should not be used if abrupt transition would create undesirable turbulence, as at pump connections. A reducing flange consists of a flange with one specified diameter having a bore of a different and smaller, diameter. Except for the bore and hub dimensions, the flange will have dimensions of the larger pipe size.


  • Type: WN Forged Flange

  • Material: Carbon steel: A105,SS400,SF440 RST37.2,S235JRG2,P250GH,C22.8, Stainless Steel: F304 F304L F316 F316L 316Ti, Copper etc.

  • Standard: ANSI,JIS,DIN,BS4504,SABS1123,EN1092-1, UNI,AS2129,GOST-12820

  • Size: 1/2-78 inch (DN15-DN2000)

  • Pressure: ANSI class 150,300,600,1500,2500, DIN PN6,PN10,PN16,PN25,PN40,PN64,PN100,PN160

  • Packing: No Fumigate or Fumigate Plywood/Wood Pallet or Case

  • Surface Treatment: Anti-rust Oil, Transparent/Yellow/Black Anti-rust Paint,Zinc,Hot dipped Galvanized.

  • Usage: Oil Field, Offshore, Water System, Shipbuilding, Natural Gas, Electric Power, Pipe Projects etc.
