ASME/ANSI B16.5 2500lb Slip on Flange |

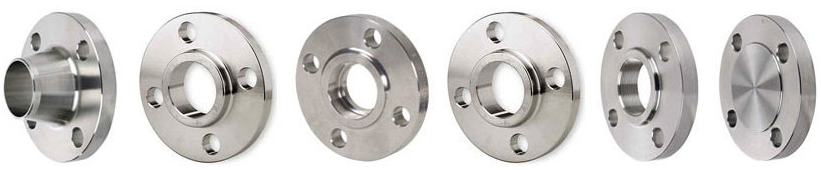

Our company offers a wide range of flanges like PL, SW, BL, WN,SO,LJ, ASME/ANSI B16.5 2500lb Slip on Flange etc., which is precisely engineered in accordance with international quality standards totally. These flanges are highly durable, corrosion resistant and reliable. Our range of flanges finds application in industries like engineering, construction, chemical, oil field and power plant. We offer these flanges in various dimensions as per the specifications provided by our clients. To gain optimum client satisfaction, we ensure safe packaging and prompt delivery of the ordered consignment.

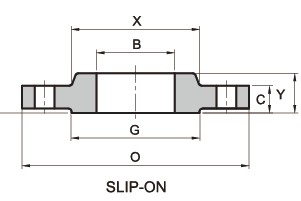

ASME/ANSI B16.5 2500lb Slip on Flange/Standards, Dimensions & Weight
| Pipe Normal Diam. |
Outside Diameter of Flange |
Diameter Bore |
thickness of Flange |
Diameter of Raised Face |
Height of Raised Face |
Diameter of Hub at Base |
Length through Hub |
No. of Holes |
Diameter of Holes |
Diameter of Bolts |
Diameter of Bolt Circle |
Weight |
| inch |
O |
|
C |
G |
|
X |
Y |
BN |
BH |
BD |
BC |
lbs. |
| 1/2 |
5.25 |
0.88 |
1.19 |
1.38 |
0.25 |
1.69 |
1.56 |
4 |
0.88 |
3/4 |
3.5 |
7 |
| 3/4 |
5.5 |
1.09 |
1.25 |
1.69 |
0.25 |
2 |
1.69 |
4 |
0.88 |
3/4 |
3.75 |
9 |
| 1 |
6.25 |
1.36 |
1.38 |
2 |
0.25 |
2.25 |
1.88 |
4 |
1 |
7/8 |
4.25 |
12 |
| 1 1/4 |
7.25 |
1.70 |
1.5 |
2.5 |
0.25 |
2.88 |
2.06 |
4 |
1.12 |
1 |
5.12 |
18 |
| 1 1/2 |
8 |
1.95 |
1.75 |
2.88 |
0.25 |
3.12 |
2.38 |
4 |
1.25 |
1 1/8 |
5.75 |
25 |
| 2 |
9.25 |
2.44 |
2 |
3.62 |
0.25 |
3.75 |
2.75 |
8 |
1.12 |
1 |
6.75 |
38 |
| 2 1/2 |
10.5 |
2.94 |
2.25 |
4.12 |
0.25 |
4.5 |
3.13 |
8 |
1.25 |
1 1/8 |
7.75 |
55 |
| 3 |
12 |
3.57 |
2.62 |
5 |
0.25 |
5.25 |
3.63 |
8 |
1.38 |
1 1/4 |
9 |
83 |
| 4 |
14 |
4.57 |
3 |
6.19 |
0.25 |
6.5 |
4.25 |
8 |
1.62 |
1 1/2 |
10.75 |
127 |
| 5 |
16.5 |
5.66 |
3.62 |
7.31 |
0.25 |
8 |
5.13 |
8 |
1.88 |
1 3/4 |
12.75 |
210 |
| 6 |
19 |
6.72 |
4.25 |
8.5 |
0.25 |
9.25 |
6 |
8 |
2.12 |
2 |
14.5 |
323 |
| 8 |
21.75 |
8.72 |
5 |
10.62 |
0.25 |
12 |
7 |
12 |
2.12 |
2 |
17.25 |
485 |
| 10 |
26.5 |
10.88 |
6.5 |
12.75 |
0.25 |
14.75 |
9 |
12 |
2.62 |
2 1/2 |
21.25 |
925 |
| 12 |
30 |
12.88 |
7.25 |
15 |
0.25 |
17.38 |
10 |
12 |
2.88 |
2 3/4 |
24.38 |
1300 |
Note:
1) Blind Flanges may be made with the same hub as that used for Slip-on Flanges or without hub.
|
|
